Gepanzerter Lichtwellenleiter im Freien

Customized Cores Outdoor Armored Fiber Optic Cable with OM1-OM4 Fiber and Temperature Resistance (-40°C to +70°C)

Alle Kategorien

Gepanzerter Lichtwellenleiter im Freien

Innen- und Außenbefestigungsfasern

Kabel mit Glasfaser in Innenräumen

Faseroptikmodul

Treten Sie mit uns in Verbindung

sales@hxfiber.com

Kontakt jetzt

Customized Cores Outdoor Armored Fiber Optic Cable with OM1-OM4 Fiber and Temperature Resistance (-40°C to +70°C)

Markenbezeichnung:	HX
Modellnummer:	HX-GL2
MOQ:	1

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

Guangdong, China

Zertifizierung:

CE/ROHS/ISO9001

Anzahl der Leiter:

Kabelfarbe:

Schwarz

Mantelmaterial:

PE-Mantel

Kabelstruktur:

Mehrfachlockerrohr

Faseroptionen:

IFU G652D, G657A, Om1, Om2, Om3, Om4

Stärke Mitglied:

Zentraler Stahldraht oder FRP

Dämpfung bei 850 nm:

≤3,0 dB/km (50/125 μm), ≤3,3 dB/km (62,5/125 μm)

Dämpfung bei 1300 nm:

≤1,0 dB/km

Abdünnung @1310 nm:

≤0,36 dB/km (G652), ≤0,40 dB/km (G655)

Abdünnung @1550 nm:

≤0,22 dB/km (G652), ≤0,23 dB/km (G655)

Bandbreite bei 850 nm:

≥500 MHz*km (50/125μm), ≥200 MHz*km (62,5/125μm)

Bandbreite bei 1300 nm:

≥1000 MHz*km (50/125μm), ≥600 MHz*km (62,5/125μm)

Numerische Blende:

0,200 ± 0,015 NA (50/125 μm), 0,275 ± 0,015 NA (62,5/125 μm)

Grenzwellenlänge:

≤1260 nm (G652), ≤1450 nm (G655)

Betriebstemperatur:

-40 ° C bis +70 ° C.

Hervorheben:

OM1-OM4 Fiber Outdoor Armored Fiber Optic Cable

Temperature Resistant Outdoor Armored Fiber Optic Cable

Customized Cores GYTS Fiber Optic Cable

Produkt-Beschreibung

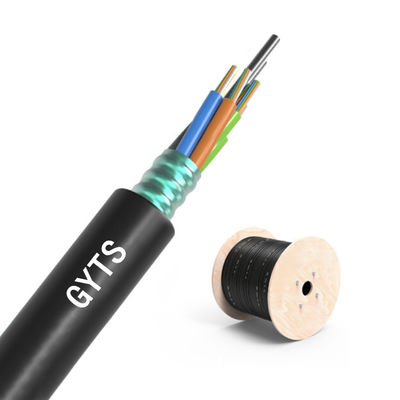

Customized 2-288 Cores SM/MM Outdoor Armoured GYTS Fiber Optic Cable

Technical Specifications

Parameter	G.652	G.655	50/125 μm	62.5/125 μm
Attenuation (+20°C)
@850nm			≤3.0dB/km	≤3.3dB/km
@1300nm			≤1.0dB/km	≤1.0dB/km
@1310nm	≤0.36dB/km	≤0.40dB/km
@1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth (A-level)			≥500 MHz*km	≥200 MHz*km
@1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical aperture			0.200±0.015NA	0.275±0.015NA
Optical fiber cable cut-off wavelength	≤1260nm	≤1450nm

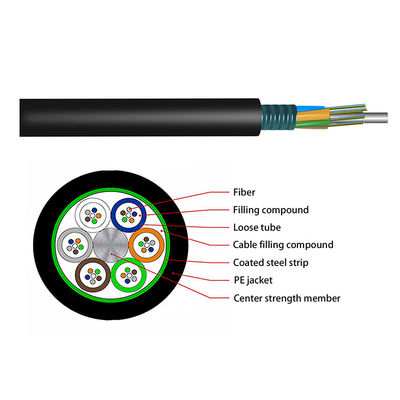

Cable Configuration

Fiber Count	Casings	Filling Ropes	Cable Diameter (mm)
2-6	1	4	9.2
8-12	2	3	9.2
14-18	3	2	9.2
20-24	4	1	9.2
26-30	5	0	9.2
32-36	6	0	9.7
38-48	4	1	10.5
50-60	5	0	10.5
62-72	6	0	11.5
74-84	7	1	13.2
86-96	8	0	13.2
98-108	9	1	14.6
110-120	10	0	14.6
122-132	11	1	16.5
134-144	12	0	16.5
146-216	13-18	5-0	16.5
288	24	0	16.5

Mechanical Properties

Cable Weight (kg/km)	Allowable Tensile Force (N)	Allowable Flat Pressure (N/100mm)	Bending Radius (mm)
80	600/1500	300/1000	10D/20D
97	1000/3000

Key Features

Steel jacket provides high tension and crush resistance
Special gel in the tube offers critical protection for the fibers

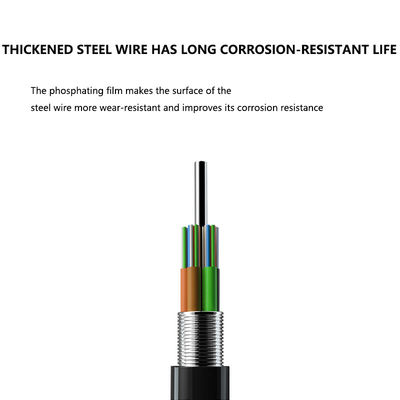

Steel central strength member for added durability

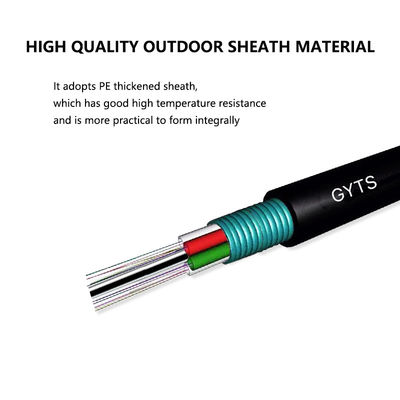

PE jacket prevents UV damage (UV-resistant material available)
Excellent performance in high and low temperature environments
Anti-aging properties for long-term reliability

Applications

Conduit/buried installations
Connecting communication equipment
Multi-core wiring systems in data centers

Standards Compliance

YD/T901-2009
IEC 60794-1

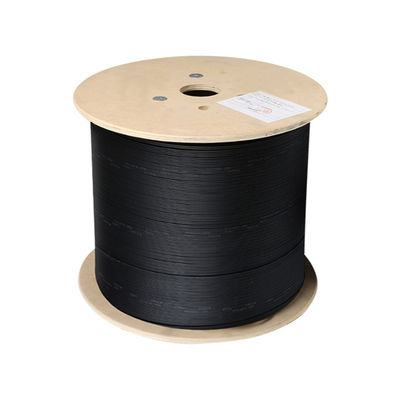

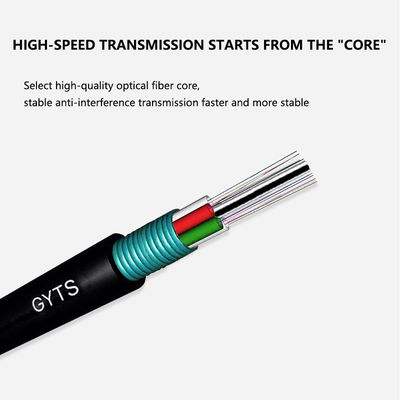

Product Images

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
